Paragon KM-18T Sentinel

Paragon KM-18T Sentinel

KnifeMaker

$3,110.00
SKU: 7773deaed773c4b497d051c6b407e409
Availability: 72 in stock

Product Description

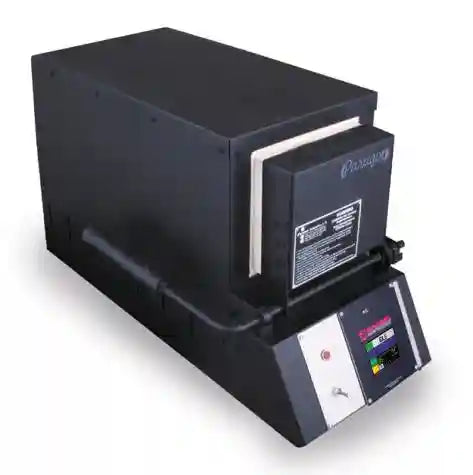

The Paragon KM-18T Sentinel represents your opportunity to economically begin your own heat treating capability. Like all Paragon Kilns, it is built like a tank.  This one boasts extra thick 3" firebrick for efficiency - a door switch for your safety - and if you like, you can make it yours by choosing side swing or drop door and even choosing other colors.  This one comes with the Sentinel touch screen controller- processing power and versatility.

18" is pretty good for most makers.  Think of the longest blade you'll make - Chef knife?  Fillet knife?  Carving set?  Now add an inch for the foil envelope.  Unless you do big Kukrhi or Machete', this will handle what you feed it.

Sorry, no sales outside Canada

Are you ready for this?  It runs on 120V - 5-20 outlet - standard in much newer construction.


Specifications

Max. Temperature

2350F
1287C

Amps

17

Phase

1

Watts

2000

Nema

5-20R

TUV tested to CSA and UL Standard 499

N

CE

N

Control Type

Sentry Digital 12-key Non-Ceramic

Voltage

120

Hertz

60

Nema Details

Kiln Type

Front Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

0.24 CU.FT.
6.80 litres

Chamber Width

5.50 IN
140 mm

Chamber Depth

18.00 IN
457 mm

Chamber Height

4.25 IN
108 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

17.00W x 31.00D x 17.00H Inches
432W x 787D x 432H mm

Ship Size

29.00W x 38.00D x 27.00H Inches
737W x 965D x 686H mm

Ship Weight

184.00 Lbs.
83.46 Kg.

Doorway Clearance Needed

21.00 Inches
533.40 mm

Ship Method & Notations


This Kiln Ships Via Truck


Part Number

5D2122MB00   * Base Model
