The Paragon KM-24T Sentinel represents your opportunity to economically begin your own heat treating capability. Like all Paragon Kilns, it is built like a tank. This one boasts extra thick 3" firebrick for efficiency - a door switch for your safety - and if you like, you can make it yours by choosing side swing or drop door and even choosing other colors. This one comes with the Sentinel touch screen controller- processing power and versatility.
| Weight | 190 lbs |
|---|---|
| Dimensions | 17 × 17 × 37 in |
GSS Part Number: 5E6180MD00
Model Number: KMT24 Sentinel
Max Temp: 2350F/1287C
Voltage: 240
Phase: 1
Hertz: 60
Amps: 12
Watts: 2800
Cordset: NEMA 6-20P

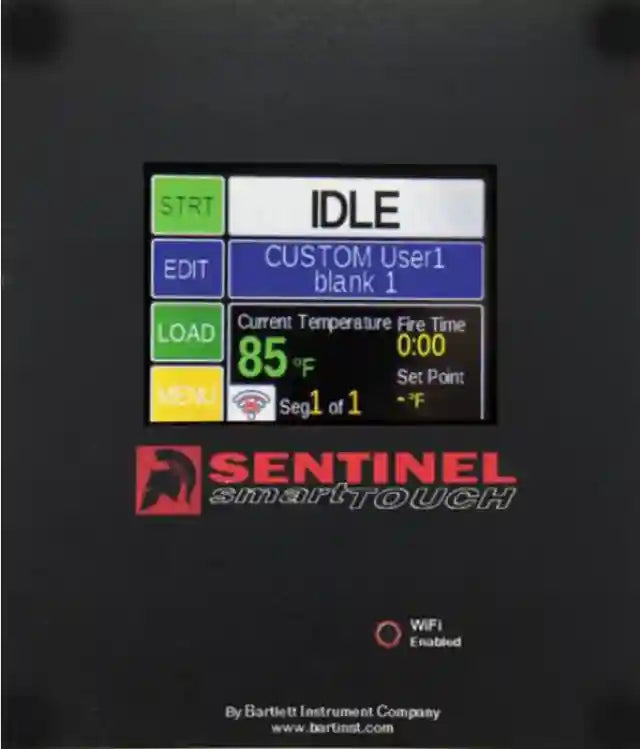

Controller: Sentinel SmartTouch
Zone: 1
Thermocouple: K-Type
Lid Door Switch: YES
TUV: NO
CE: YES
Kiln Type: KM
Door Type: Drop
Sides: 4
Chamber Dimensions:
Internal Area (Square Inches): 515
Watts per Square Inch:
Refractory Insulation Type: Brick
Wall Thickness (Inches): 3
Top Thickness (Inches): 3
Bottom Thickness (Inches): 3
Door Thickness (Inches):
Volume: .32/9.06
Width Diameter: 5.50/140
Depth: 24.00/610
Height: 4.25/108
Outer Size: 17.00″W x 17.00″H x 37.00″D/432mm W x 432mm H x 940mm D
Ship Size:29.00″W x 44.00″D x 27.00″H/737mm W x 686mm H x 1118mm D
Ship Weight: 86.18/190
Doorway Clearance: 21.00″/533.40mm
Ship Method: This Kiln Ships Via Truck
