Paragon KM-45T

Paragon KM-45T

KnifeMaker

$4,741.53
SKU: 10000017859-clone-2-clone-1-clon
Availability: 1000 in stock

Is There a Swordsmith in the House?

 Paragon kiln -

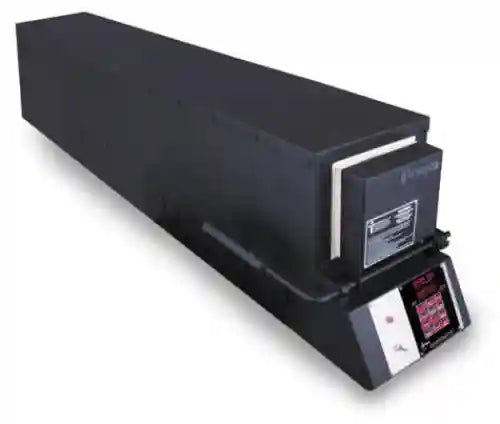

The Paragon KM-45T represents your opportunity to begin accurately heat treating long blades - including many swords. Like all Paragon Kilns, it is built like a tank.  This one boasts extra thick 3" firebrick for efficiency - a door switch for your safety - and if you like, you can make it yours by choosing side swing or drop door and even choosing other colors.  This one comes with a numeric keypad controller - which is SO WORTH the extra bucks.  You'll recover the cost in Tylenol savings.



Sorry, no sales outside Canada

RUNS ON 240v - 6-20 outlet.


Specifications

Max. Temperature

2350F
1287C

Amps

19

Phase

1

Watts

4560

Nema

6-20R

TUV tested to CSA and UL Standard 499

N

CE

N

Control Type

Sentry Digital 12-key Non-Ceramic

Voltage

240

Hertz

60

Nema Details







Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.



Kiln Type

Front Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

0.61 CU.FT.
17.27 litres

Chamber Width

5.50 IN
140 mm

Chamber Depth

45.00 IN
1143 mm

Chamber Height

4.25 IN
108 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

17.00W x 58.00D x 17.00H Inches
432W x 1473D x 432H mm

Ship Size

31.00W x 57.00D x 24.00H Inches
787W x 1448D x 610H mm

Ship Weight

255.00 Lbs.
115.67 Kg.

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck

Your kiln will ship free, but the shipping suggestions on the left are still useful









Part Number

5G6122ME00   * Base Model
