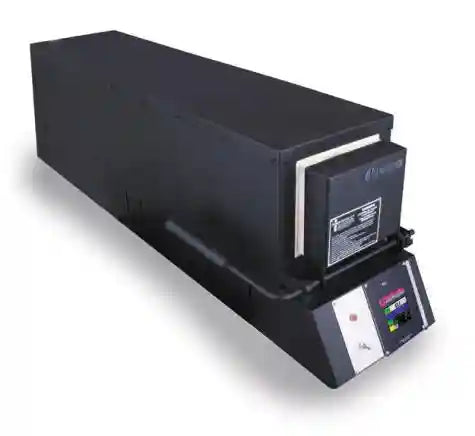

Paragon KM-36T Kiln

Paragon KM-36T Kiln

KnifeMaker

$3,364.50
SKU: 824d210106e7994fde3bf181e9d8d16b
Availability: 19 in stock

Product Description

The Paragon KM-36T represents your opportunity to begin accurately heat treating long blades - including perhaps short swords. Like all Paragon Kilns, it is built like a tank.  This one boasts extra thick 3" firebrick for efficiency - a door switch for your safety - and if you like, you can make it yours by choosing side swing or drop door and even choosing other colors.  This one comes with a numeric keypad controller - which is SO WORTH the extra bucks.

Test exotic heat treating formulas with the KM36T Series

As the owner of a Paragon KM36T Series furnace, you can live the knife-making adventure to the fullest with one of the most extraordinary furnaces we have ever developed. Knives have always accompanied explorers on great journeys. Yet knife making, itself, is an adventure all its own. It begins when the future owner shares the dream of a special knife with the maker. They talk excitedly over the first rough sketches. Then the maker retires to his shop and loses himself in the creation of the knife. Time disappears; the hours tick by as he grinds, heat treats, and polishes, sometimes well into the night. Try out the newest tool steels. Are they really as good as the tried and true D2 and A2? (Knives created from D2 or A2 will live on long after the owners have passed them on to loved ones.) The Paragon KM36T Series is rated at 2350° F, so you can heat treat as hot as you need to experiment with the new steels.

Long-lasting solid-state relays

The KM36T Series has three solid-state relays, which last far longer than standard mechanical relays and offer better temperature control during holds. Solid-state relays have no moving parts to wear out. They are silent. You will hear just the reassuring hum of the kiln’s heating elements. The relays are mounted to aluminum heat sinks for heat dissipation. Included with solid-state relays is a safety relay for your peace of mind.

3 zone temperature control for superior heat distribution

The KM36T Series offers precise heat distribution throughout the length of the firing chamber. This is because it is divided into three zones. Each zone has its own thermocouple or temperature sensor. The Sentinel controller electronically adjusts the temperature of each zone. See for yourself. Test for temperature uniformity by taking measurements along the length of a blade with a Rockwell Hardness Tester.

Ceramic fiber firing chamber for fast heating and cooling

The KM36T Series is unusually fast because it is made with space-age ceramic fiber. It can reach 500°F in minutes. Long-lasting, “wavy” elements in the walls are surface-mounted to stay cool and therefore prolong element life.

The guillotine door for years of comfortable heat treating

The guillotine door is the ultimate choice for heat treatment. The door lifts up and out of the way with one-handed operation. The hot side of the door remains away from you. The door lifts effortlessly with the assistance of spring on each side. Because of the rigid case and heavy-duty opening assembly, the door is sturdy enough for years of faithful service.

Door safety switch

The door micro safety switch shuts off the power to the elements when the door is opened, yet the controller continues to give a temperature readout. The safety switch is standard on Paragon KM furnaces.

No more waiting for commercial heat treating

A Paragon KM36T Series furnace sets the knife maker free. No more wrapping blades and shipping them to your heat treater. No more waiting until you have a dozen blades to get the best price on heat treating. No more turning away orders for last-minute gifts. While your furnace is hardening and tempering blades, you can busy yourself grinding more knives or fitting handles. After you’ve used your Paragon furnace while you will wonder how you ever got along without it. When asked to make a knife on short notice—whether for an awards presentation, a celebration or retirement party or for an archaeologist on his way to Africa—you will be ready. When a custom knife is needed as a going away gift, and the recipient is leaving in three days, you will be ready. Your KM-series furnace might even pay for itself on rush orders you would otherwise have missed. Own a furnace and you alone decide when you will complete a knife. If you stay up one Friday grinding a knife, you can heat treat it that evening and deliver it Saturday morning. Just in time for a grateful wife to present to her husband on his birthday. Finishing a knife whenever you want will excite you. You will find yourself working into the night to complete a new design. When you send the blade out for heat treating, the excitement of making and designing it will have been forgotten. By the time the blade returns, you will hardly remember it.

Solid furnace construction

The furnace is insulated with 2 1/2” space-age ceramic fiber. The thermocouple wire is kept safely inside the case for protection from the harsh environment of the typical bladesmith shop.

It runs on 240V - 6-20 outlet.


Specifications

Max. Temperature

2350F
1287C

Amps

15

Phase

1

Watts

3600

Nema

6-20R

TUV tested to CSA and UL Standard 499

N

CE

N

Control Type

Sentry Digital 12-key Non-Ceramic

Voltage

240

Hertz

60

Nema Details







Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.





Kiln Type

Front Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

0.49 CU.FT.
13.88 litres

Chamber Width

5.50 IN
140 mm

Chamber Depth

36.00 IN
914 mm

Chamber Height

4.25 IN
108 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

17.00W x 49.00D x 17.00H Inches
432W x 1245D x 432H mm

Ship Size

28.00W x 56.00D x 27.00H Inches
711W x 1422D x 686H mm

Ship Weight

230.00 Lbs.
104.33 Kg.

Ship Method & Notation

This Kiln Ships Via Truck


 Part Number

 5F6180MD00   * Base Model
